- Durable: Long service life
- Voltage Range: Wide range of input voltages ensures compatibility with a wide range of electrical systems
- Compact design: Small size; compact structure with mounting holes for easy installation;easy to install in limited space
- Stable construction: It is made of high quality materials to ensure durability and long-term reliability
- Wide range of applications: Isolation switch is widely used in machinery and various electrical appliances; and can effectively solve the problems of safety disconnection; machine control; motor control
Description
1.Product Name:

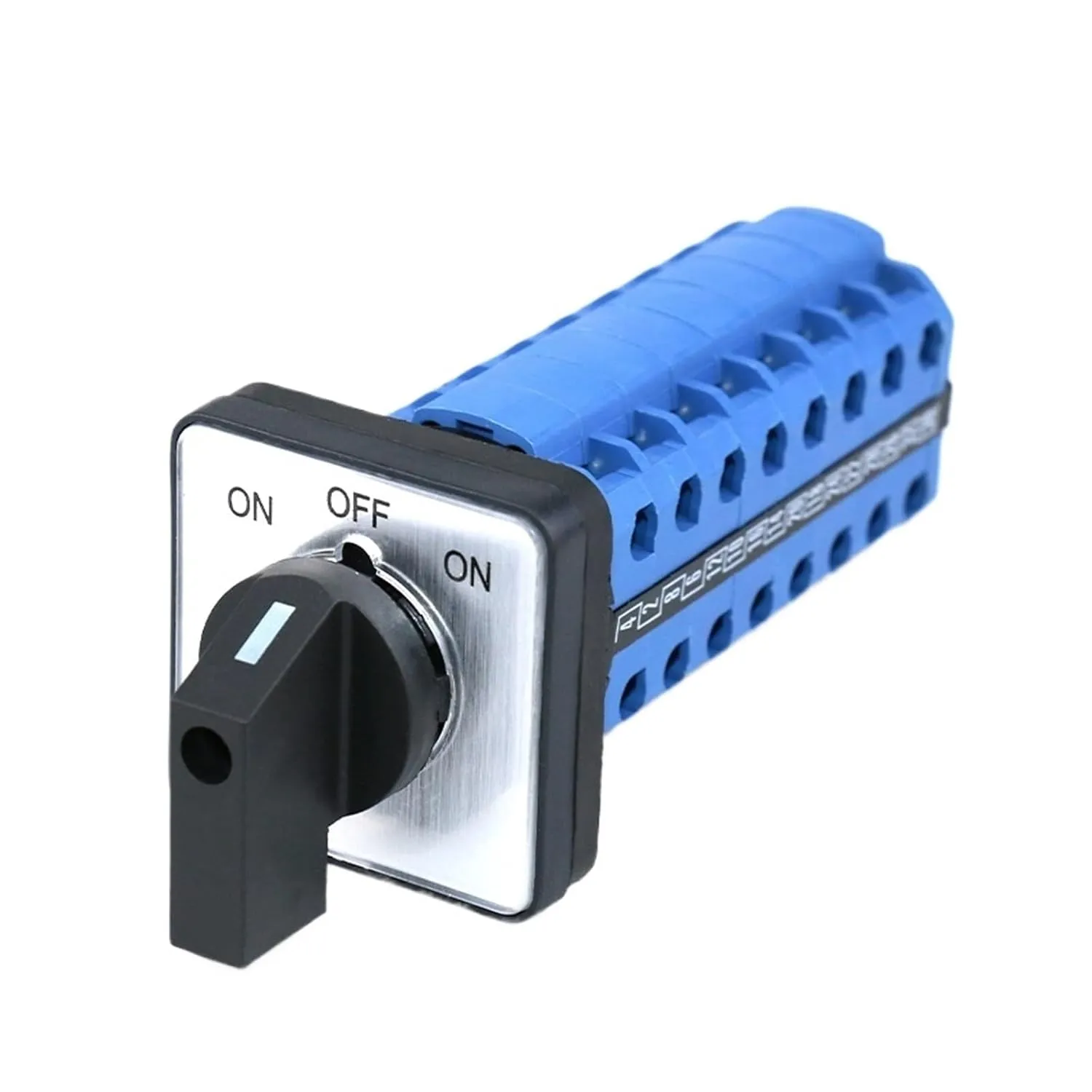

SZW26/LW26-20/D808.8 20A 8 Phase Universal Rotary Changeover Cam Switch
2.Specification:
Lacthing Selector ; Ui: 660V, Ith: 20A ; 8 Phase 32 Terminals
3 Position (ON-OFF-ON)
3.Rating :
AC-15: Ue 440V Ie 20A
DC-13: Ue 240V Ie 1A

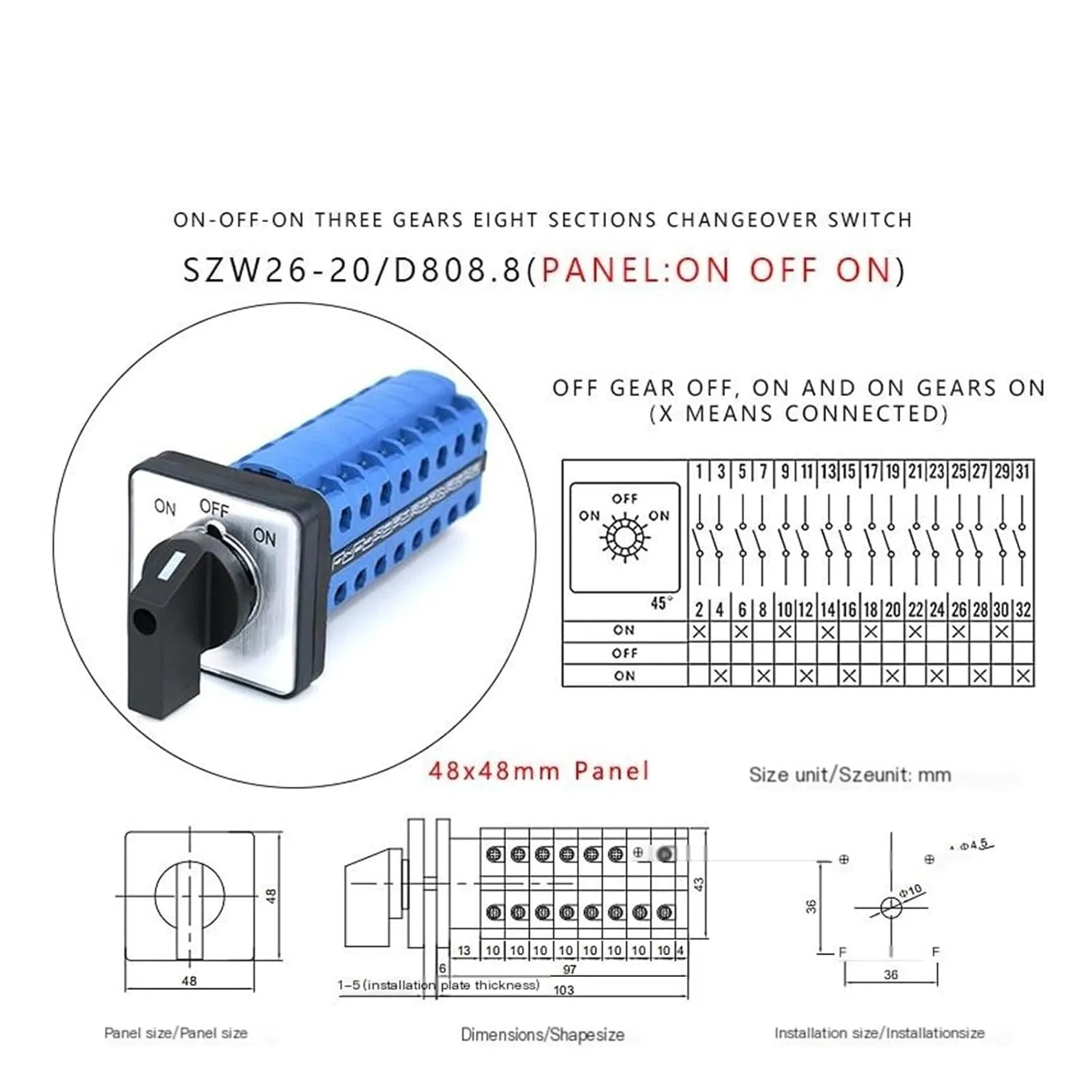

4.Panel size:48 x 48 mm,Install Size:36 x 36mm
Panel size:64 x 64 mm,Install Size:48 x 48mm
Position ON: 1-2 , 5-6 , 9-10 , 13-14 , 17-18 , 21-22 , 25-26 ,29-30
Position OFF : All terminal disconnected
Position ON : 3-4 , 7-8 , 11-12 ,15-16 , 19-20 , 23-24 , 27-28 , 31-32
Current : 20A
Material : Plastic
Switch Type : Universal Switch
Model Number : SZW26-20/D808.8
Features : 8 Phase
Item Type : SWITCHES
Rated insulation voltage(Ui) : 660V
Conventional heating current(Ith) : 20A
Use category 1 : AC-15
Rated working voltage(Ue) 1 : 440V
Rated working current(Ie) 1 : 20A
Use category 2 : DC-13
Rated working voltage(Ue) 2 : 240V
Rated working current(Ie) 2 : 1A
