- Price For: Each Head Material: Plastic Terminal Connection: Screw Clamp Color: Red IP Rating: 66 Number of Operators: 1 Item: Emergency Stop Push Button Action: Maintained Push / Maintained Pull Size: 22mm NEMA Rating: 1, 2, 3, 4, 4X, 12, 13
- Standards: EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/IEC 60364-5-53, EN/ISO 13850, JIS C 4520, UL508, CSA C22.2 N.14 Type of Operator: 40mm Mushroom Head Legend: No Legend Contact Form: 1NC Features: Panel Mounting Material: Metal NEMA Contact Rating Designation: A600/Q600 Contact Rating: 10A @ 600VAC Bezel: Chrome Plated Zinc Die Cast
- Country of Origin (subject to change): Czech Republic

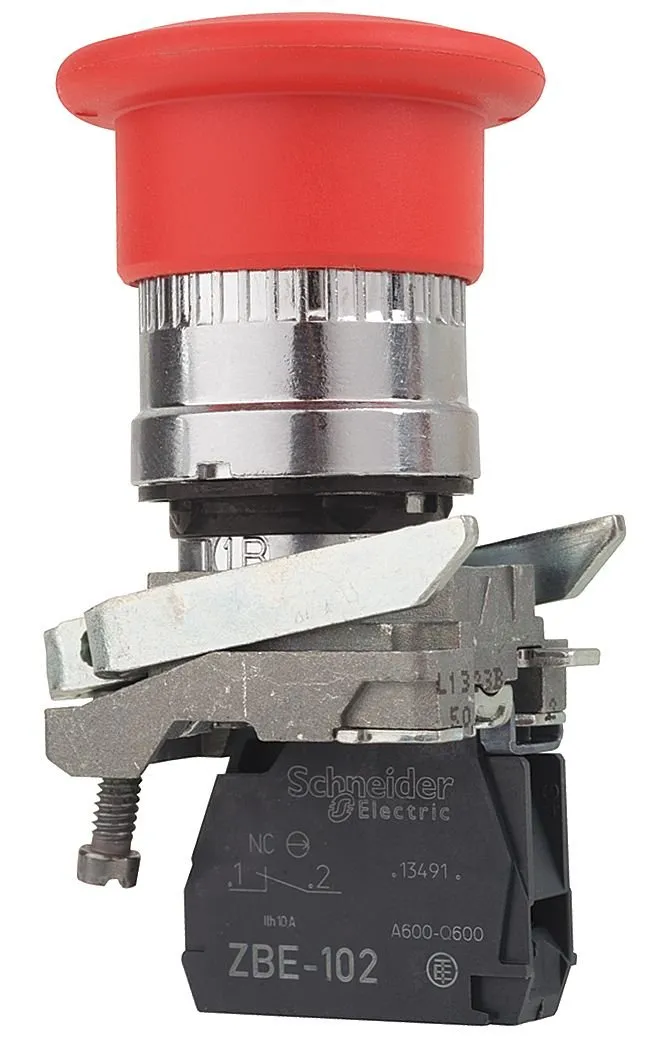

' Emergency Stop Push Button, 22mm, Maintained Push / Maintained Pull Action, 40mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 1NC, Bezel Chrome Plated Zinc Die Cast, Color Red, Contact Rating 10A @ 600VAC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 2, 3, 4, 4X, 12, 13, IP Rating 66, Legend No Legend '
- Product Dimensions : 5.91 x 5.91 x 5.91 inches; 1 Pounds
- Date First Available : July 15, 2015
- Manufacturer : SCHNEIDER ELECTRIC
