- Residential or Commercial use. Ramset 300 UL 1/2 HP
- Max Gate Capacity 1000 lbs. /18' length
- Max Operating Speed 14 seconds per 90°
- Motor: continuous duty 1/2 Hp Power 120 VAC, 4.5 amp. UL 325 listed
- Note: The Per UL325-2016 all gate operators sold in the USA after February 2016 will be required to have a monitored safety photo cell to prevent accidental crushing or entrapment.
Ramset’s Intelligate" Control Board is for operating a vehicular gate operator; the control board is available for either 110VAC or 220VAC, single phase, applications; the control board contains self adjusting ERD, left hand/right hand operation control, lead/lag capability, one-pass anti-tailgating, and options for 4 different gate addresses; the control board also includes a rectified 24VAC, transformer
Ramset 300 UL 1/2 HP Swing Gate Operator
Residential or Commercial use.
Max Gate Capacity 1000 lbs. /18' length
Max Operating Speed 14 seconds per 90°
Motor: continuous duty 1/2 Hp
Emergency foot pedal to release.
Dimensions: H:27" - L:16 1/2" - W:20"
Power 120 VAC, 4.5 amp. UL 325 listed

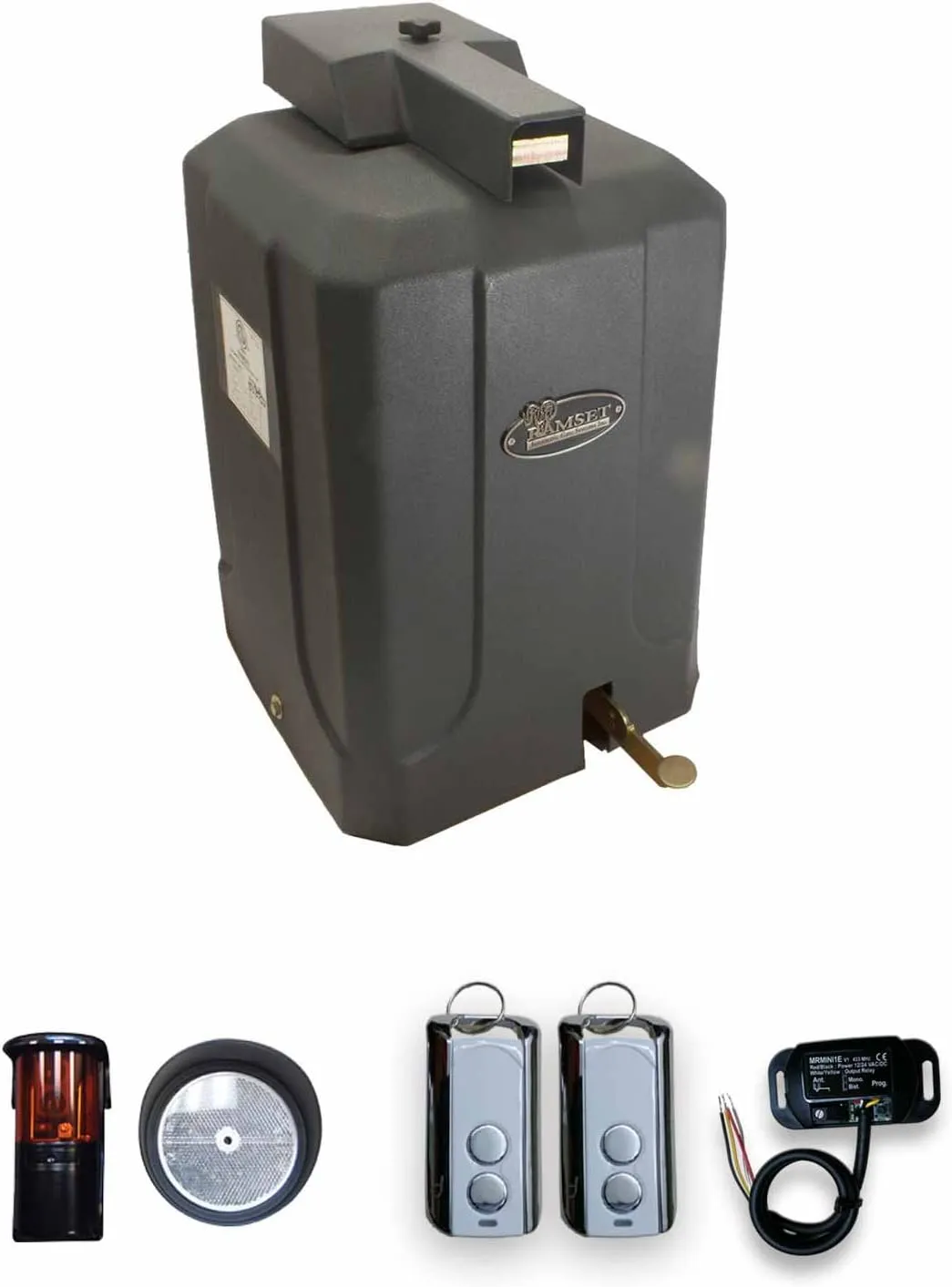

Ram 300 gate Openers kit 2
Include:
Ram 300 gate operator
Receiver 433 MHz range of up to 150 feet
Two Mini-Remote Control model 433 MHz 2-Button
BFT Photo Cell / Photo Eye with Reflector
