- Ram 100 1/2 hp Gate Operators
- Max Gate Size 20' Max Gate Weight 700 lbs.
- Motor Continuous duty. 1/2 Hp, 120VAC, 50/60 hz
- Note: The Per UL325-2016 all gate operators sold in the USA after February 2016 will be required to have a monitored safety photo cell to prevent accidental crushing or entrapment.
Ramset Slide Gate Openers Ram 100 1/2 hp Gate Operators
GENERAL SPECIFICATIONS:
Max Gate Size 20' Max Gate Weight 700 lbs.
Motor Continuous duty. 1/2 Hp, 120VAC, 50/60 hz
Emergency Release Foot pedal Release, Power Inverter
Dimensions H:22" - L:14 1/2" - W:15"
Travel Speed 1' Per Second
Electronic Features
Control Board: easy to configure solid state board with features such as L.E.D. readouts to indicate status of operator at all times
Electronic Reversing Device (ERD): two separate adjustments for reversing when encountering obstruction during opening or closing; reverses for 1 second and stops.

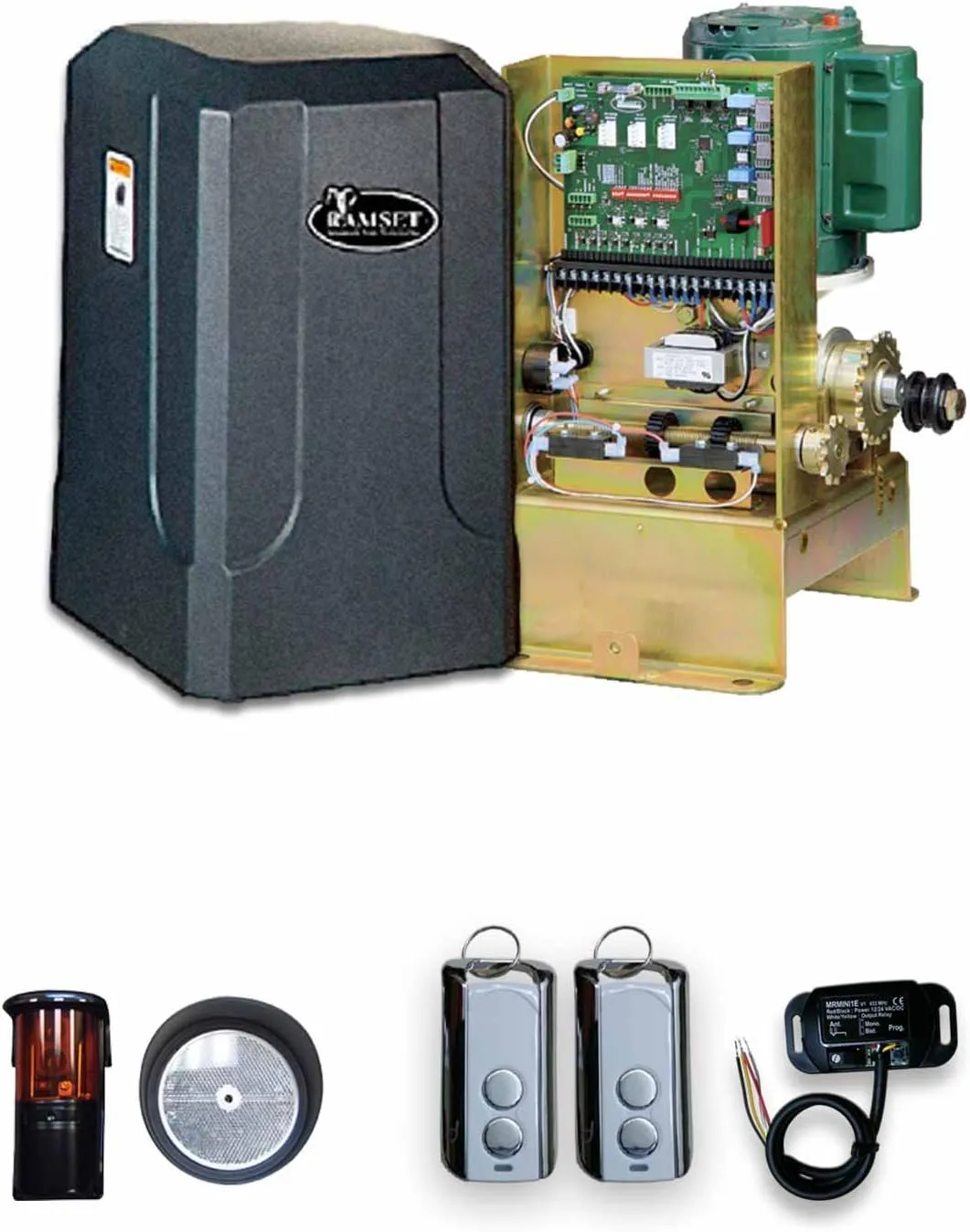

Ram 100 gate Openers kit 2
Include:
Ram 100 gate operator
Receiver 433 MHz range of up to 150 feet
Two Mini-Remote Control model 433 MHz 2-Button
BFT Photo Cell / Photo Eye with Reflector
