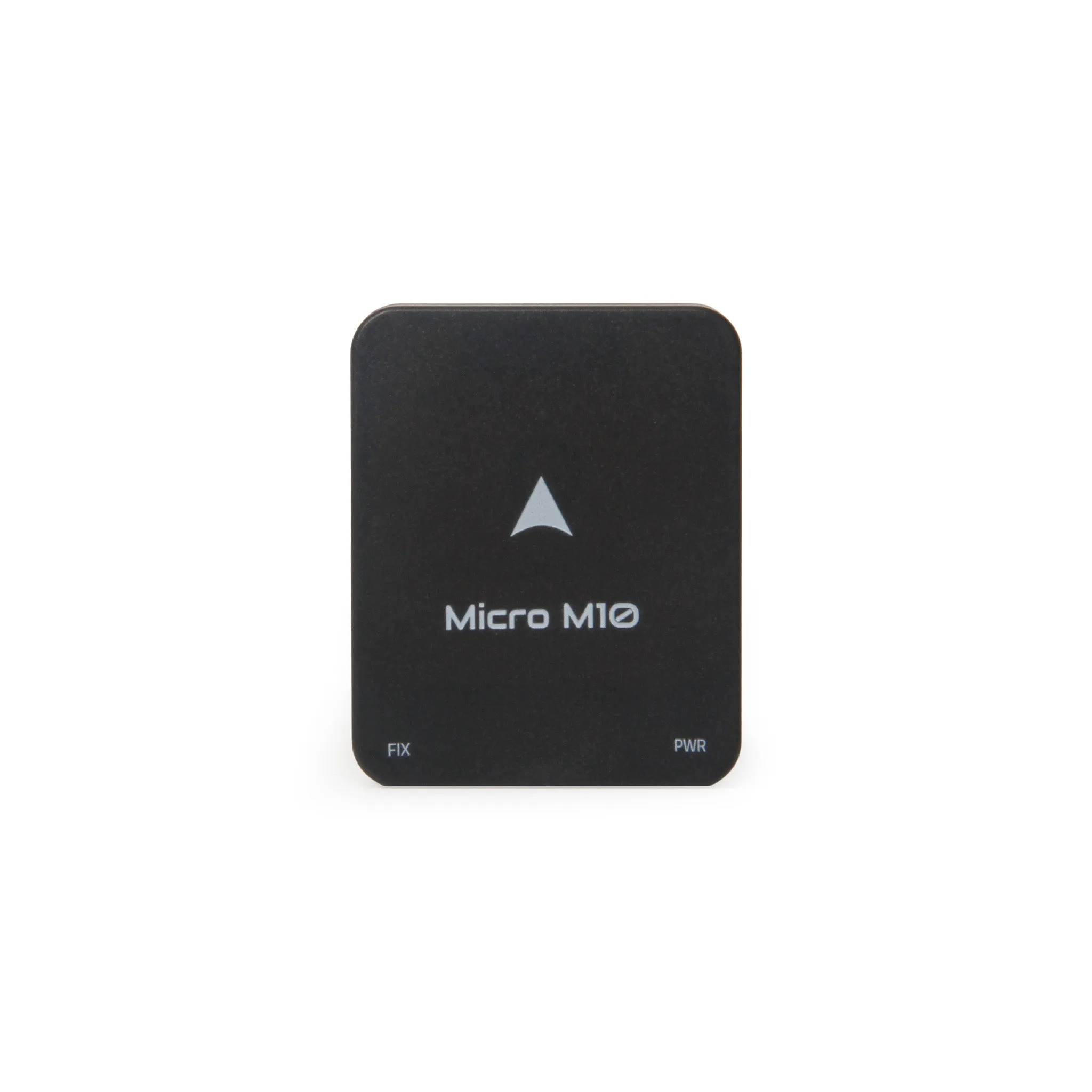

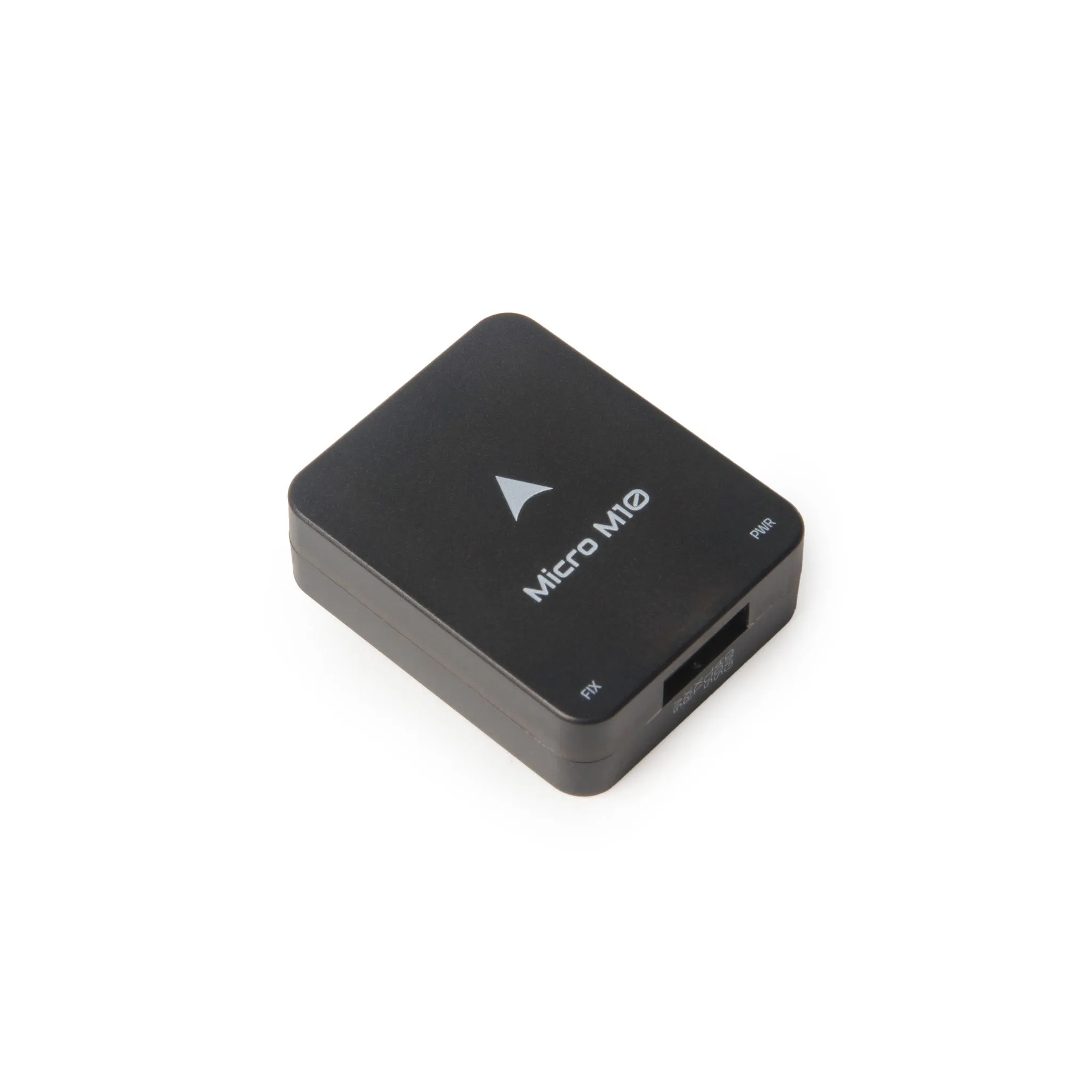

Description:
These Micro GPS uses multi-constellation GNSS powered by u-blox M10, a concurrent GNSS receiver that can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture, all four major GNSS constellations, GPS, Galileo, GLONASS, and BeiDou, can be received concurrently. It also comes with the IST8310 compass.

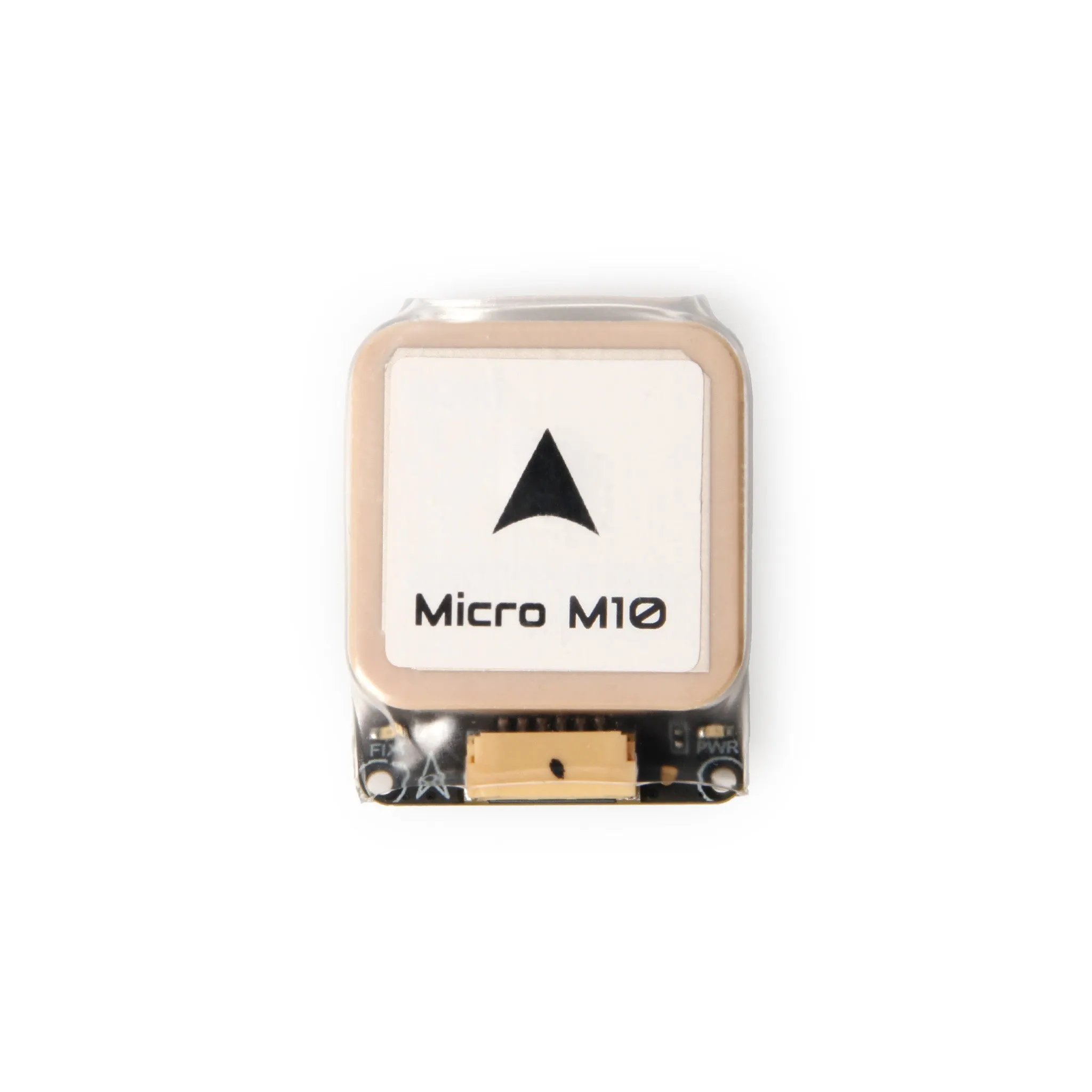

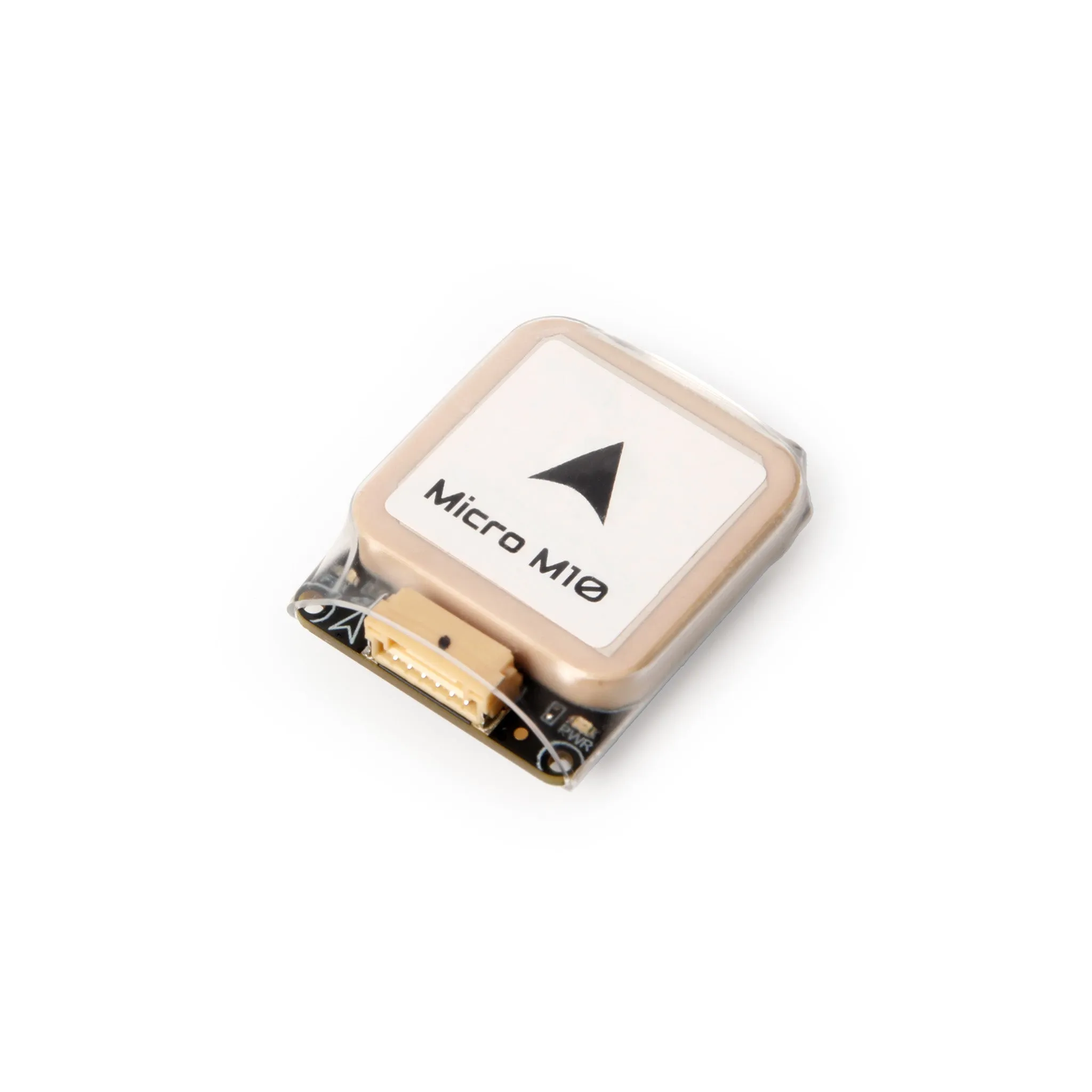

The high-gain 25 x 25 mm2 patch antenna provides excellent performance, and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna and a rechargeable backup battery for warm starts.
High-Speed Drone GPS Comparison:
This blog post put the Holybro M10, M9N, F9P, and Matek M10Q to an ultimate test to determine which GPS units could keep pace with a high-speed drone in acro mode while ensuring precision during RTL and autonomous missions.
Features
- Newest Ublox 10th Gen GNSS
- Fast & Accurate Positioning
- IST8310 Compass
- Small Form Factor
Specifications:
| Holybro Micro M10 GPS | Holybro Micro M9N GPS | |
| GNSS Receiver | Ublox M10 | Ublox M9N |
| Number of Concurrent GNSS | Up to 4 GNSS - BeiDou - Galileo - GLONASS - GPS - QZSS | Up to 4 GNSS - BeiDou - Galileo - GLONASS - GPS - QZSS |
| Frequency Band | - GPS L1 - Galileo E1 - GLONASS L1 - BeiDou B1 - SBAS L1 - QZSS L1 | - GPS L1 - Galileo E1 - GLONASS L1 - BeiDou B1 - SBAS L1 - QZSS L1 |
| Compass | IST8310 | IST8310 |
| Output Protocol | - UBX (U-blox) - NMEA | - UBX (U-blox) - NMEA |
| Accuracy | 2.0m CEP | 1.5m CEP |
| Nav. Update Rate | Up to 25 Hz (single GNSS), Up to 10 Hz (4 concurrent GNSS) | Up to 25 Hz (4 concerrent GNSS) |
| GNSS Augmentation System | EGNOS, GAGAN, MSAS and WAAS QZSS: L1S | EGNOS, GAGAN, MSAS and WAAS QZSS: L1S |
| Default Baud Rate | 115200 | 115200 |
| Input Voltage | 4.7-5.2V | 4.7-5.2V |

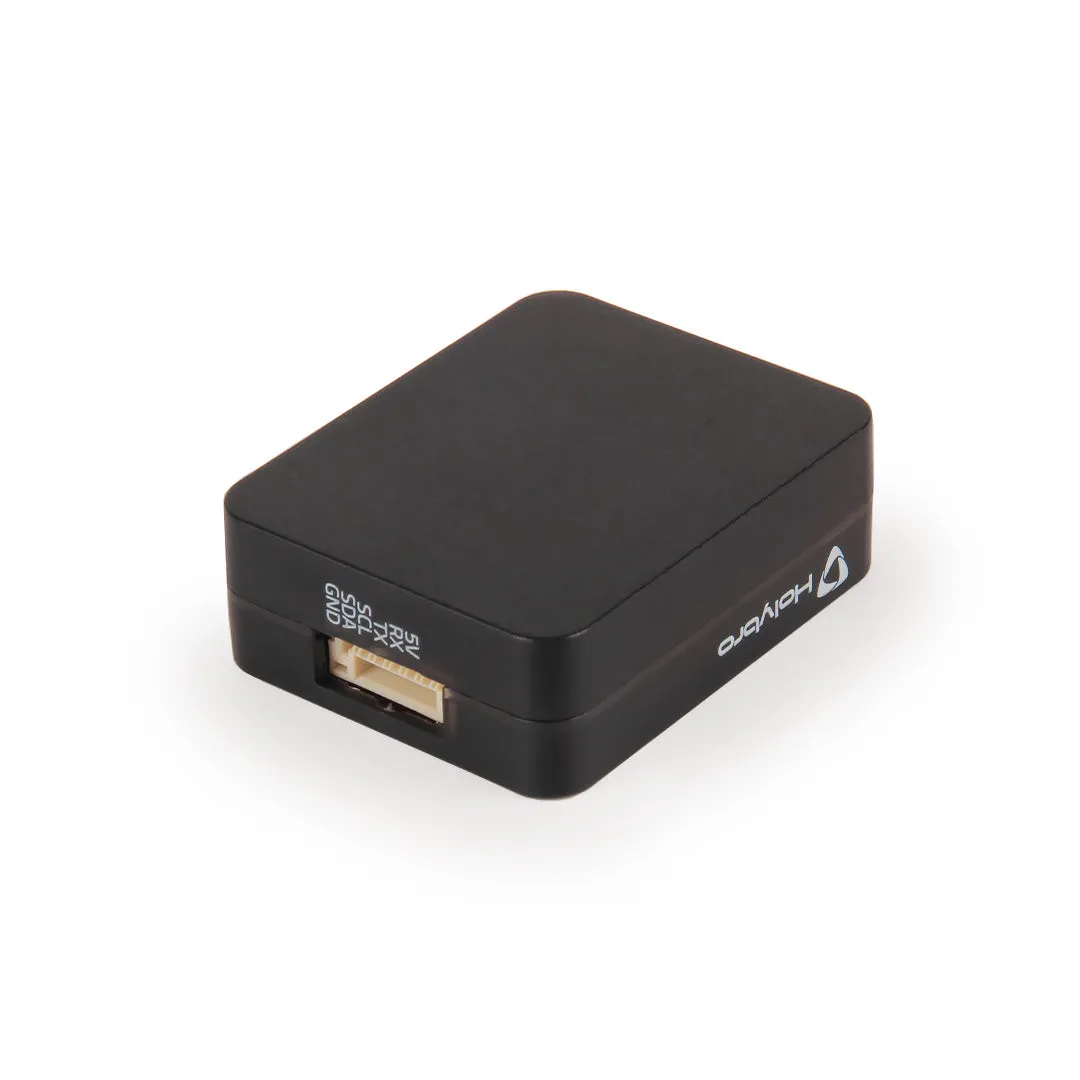

| Port Type | JST-GH-6P | JST-GH-6P |
| Antenna | 25 x 25 x 4 mm ceramic patch antenna | |
| Antenna Gain | 1.5dbi | |
| Antenna LNA Gain | 22dB | |
| Power consumption | Less than 200mA @ 5V | Less than 200mA @ 5V |
| Operating Temperature | -40~80C | -40~80C |

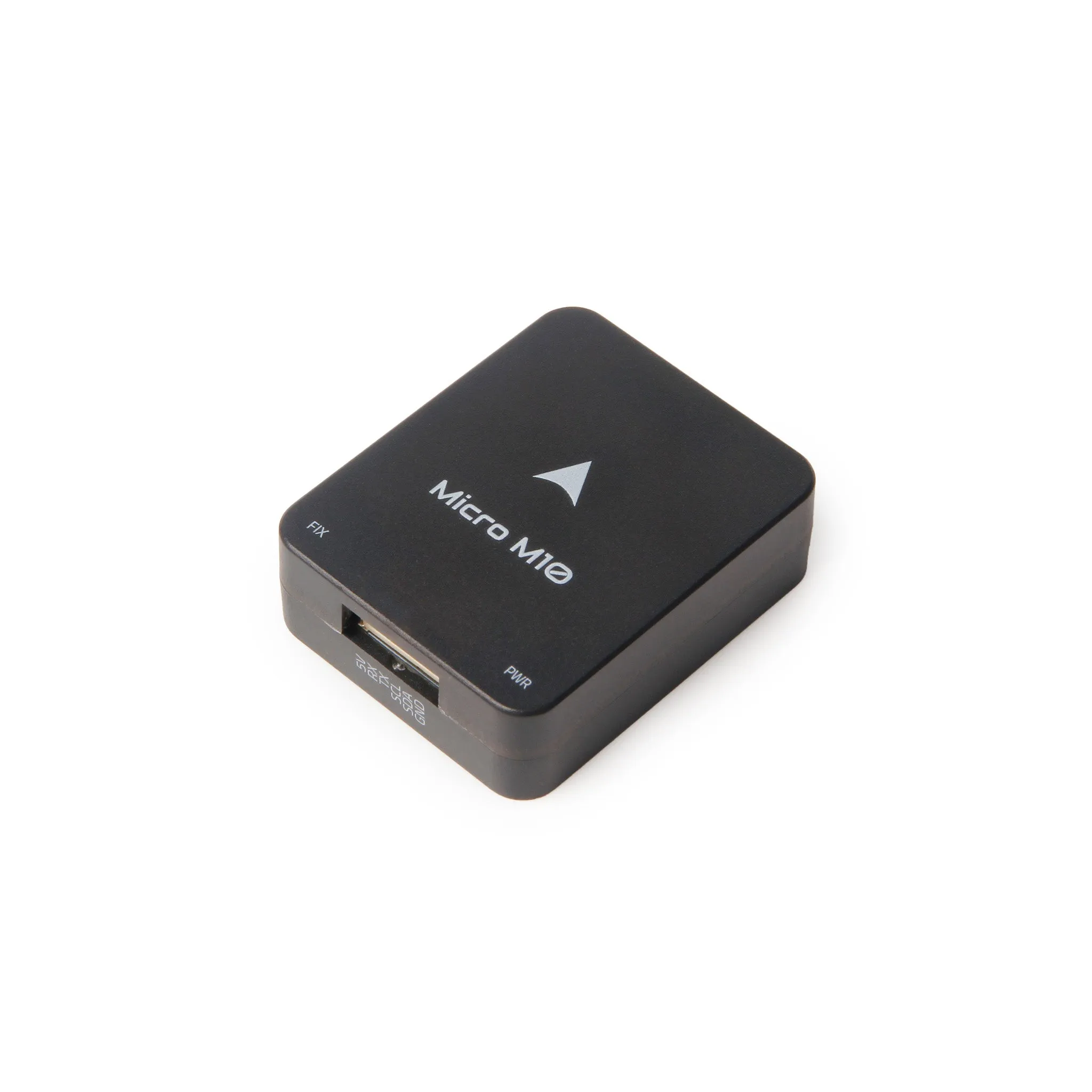

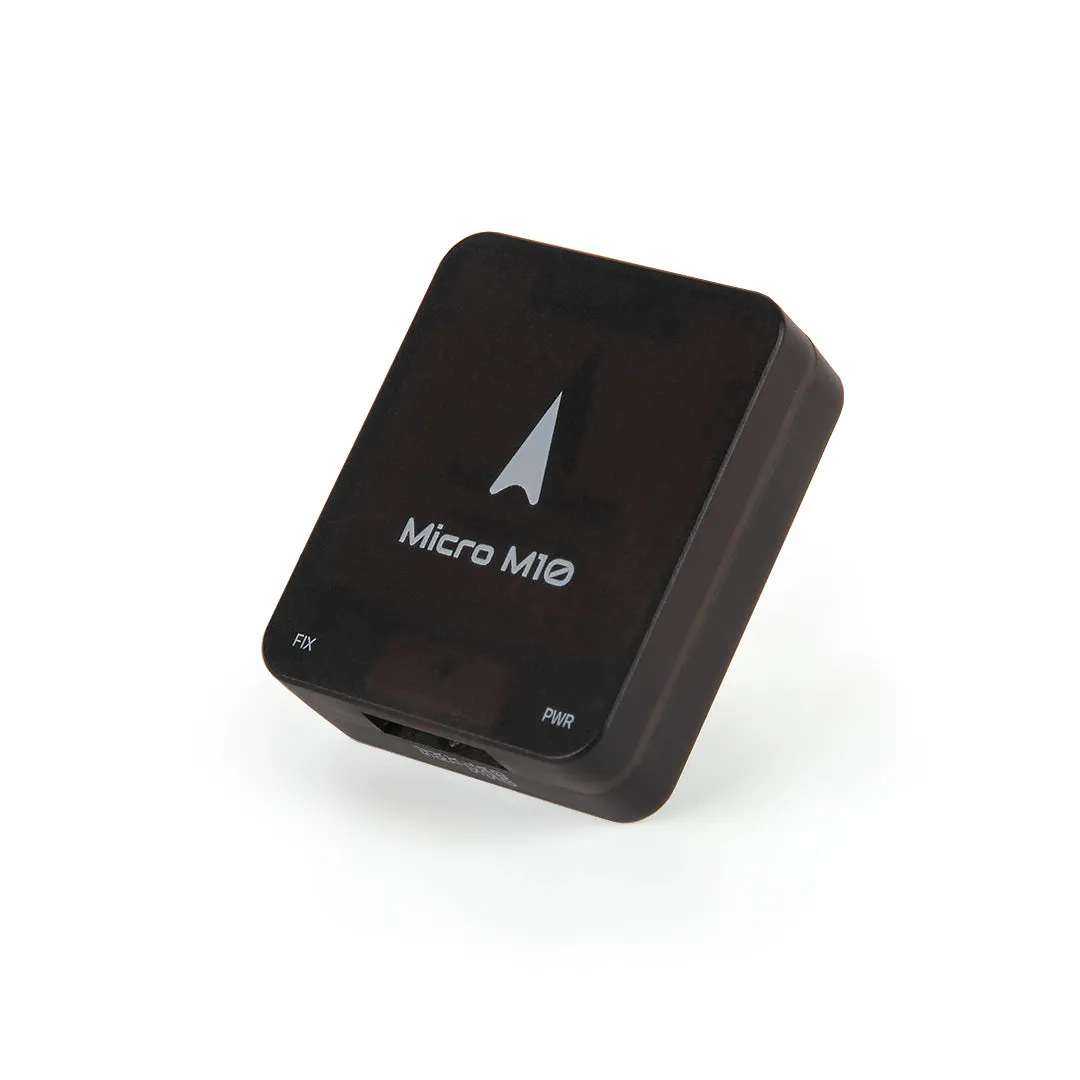

| Dimension | - 32 x 26 x 9mm (w/o Case) - 34 x 28 x 11mm (With Case) | - 32 x 26 x 9mm (w/o Case) - 34 x 28 x 11mm (With Case) |

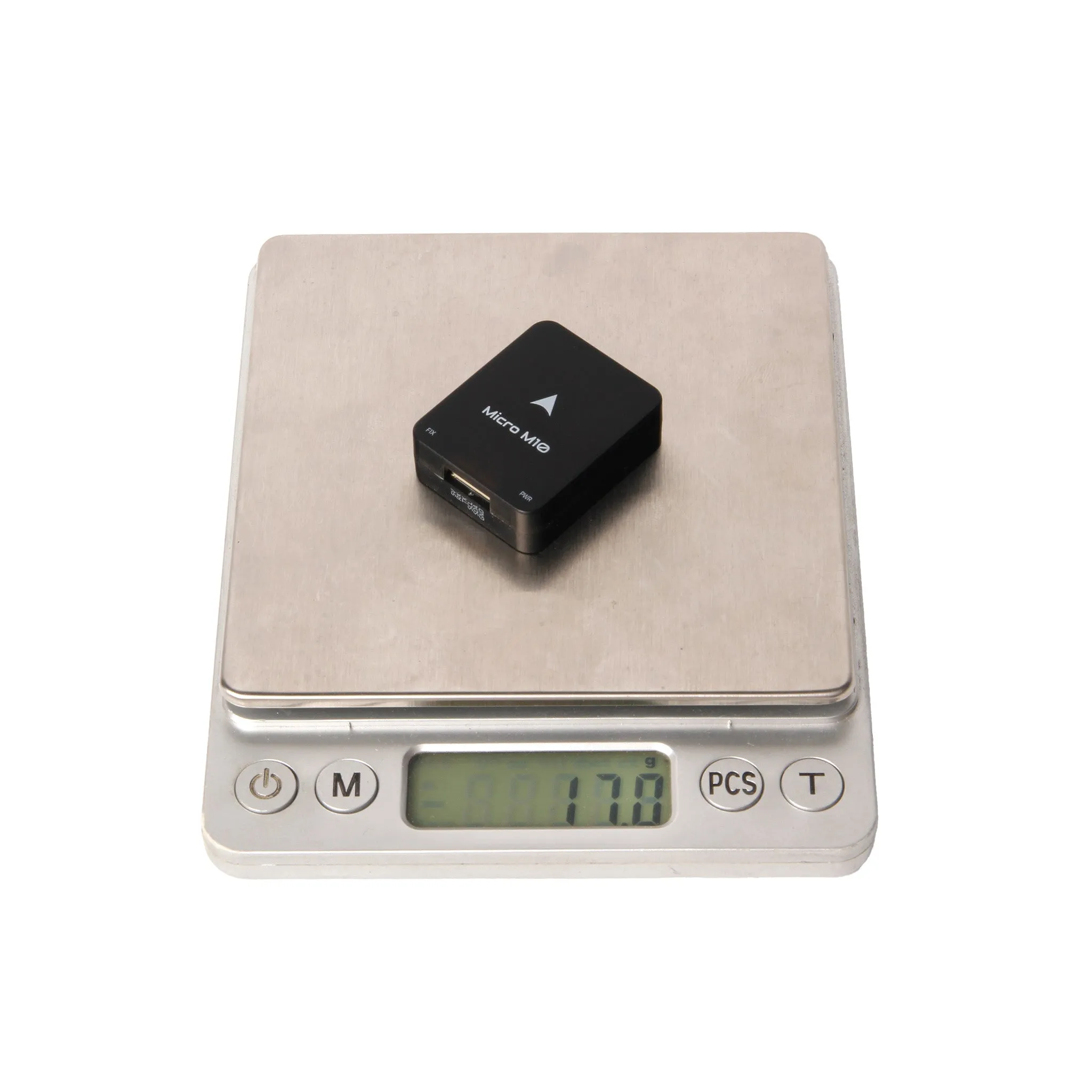

| Weight | - 14g (w/o Case) - 16g (With Case) | - 14g (w/o Case) - 16g (With Case) |

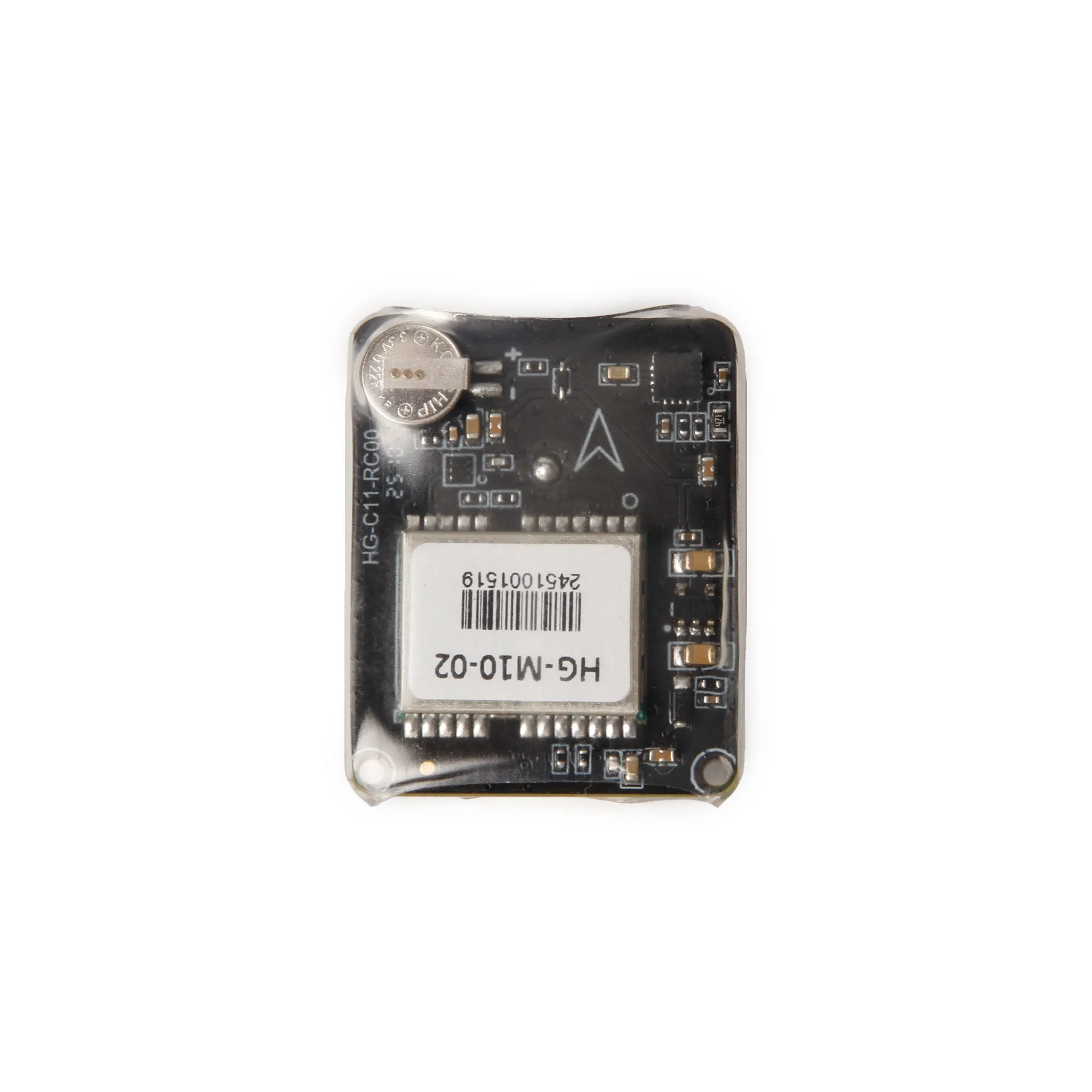

| Other | - LNA MAX2659ELT RF Amplifier - Rechargeable Farah capacitance - Low noise 3.3V regulator | - LNA MAX2659ELT RF Amplifier - Rechargeable Farah capacitance - Low noise 3.3V regulator |
Firmware Support for M10 GPS: PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.

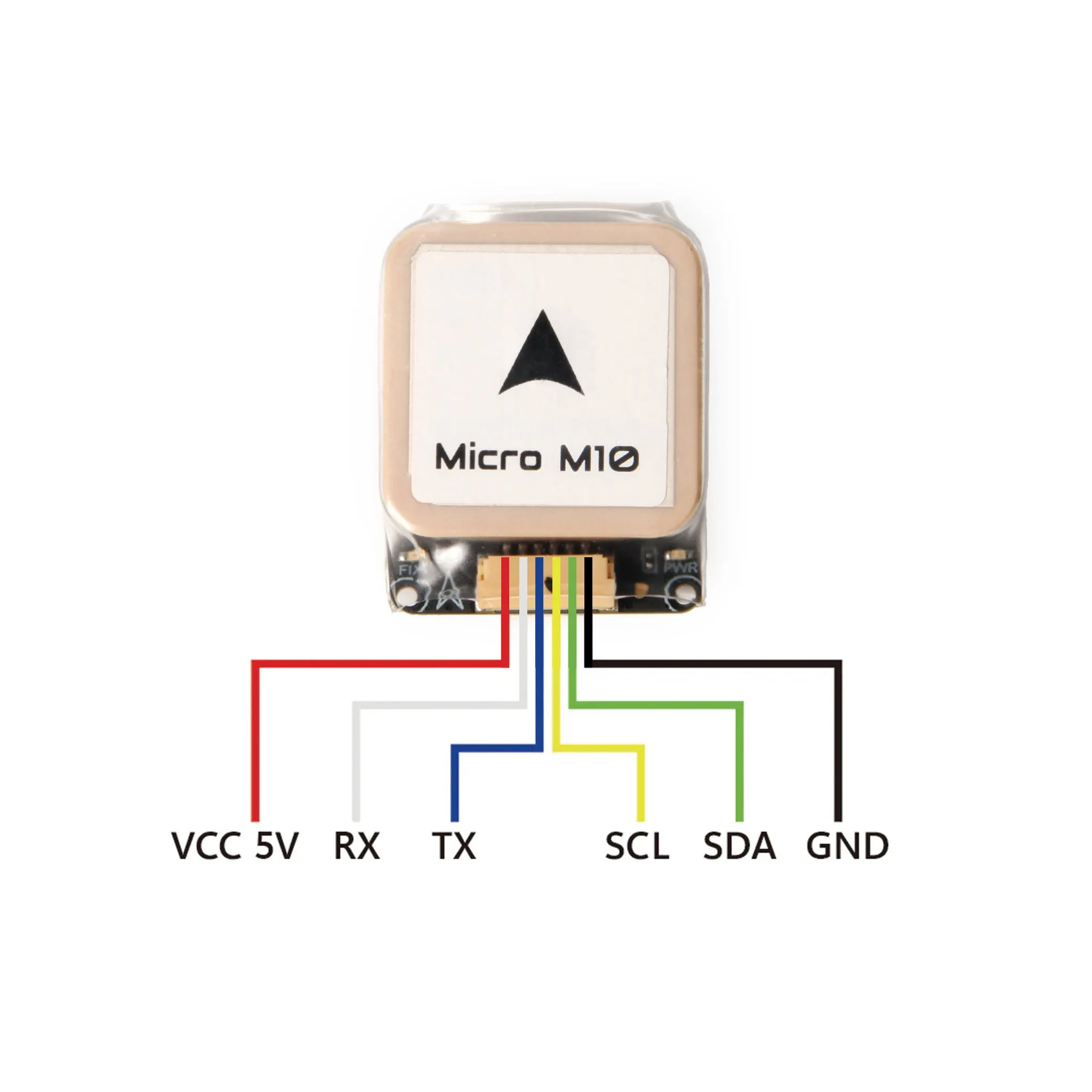

PIN MAP
Reference Link
- Holybro Documentation
- Dimension
- 3D CAD Download

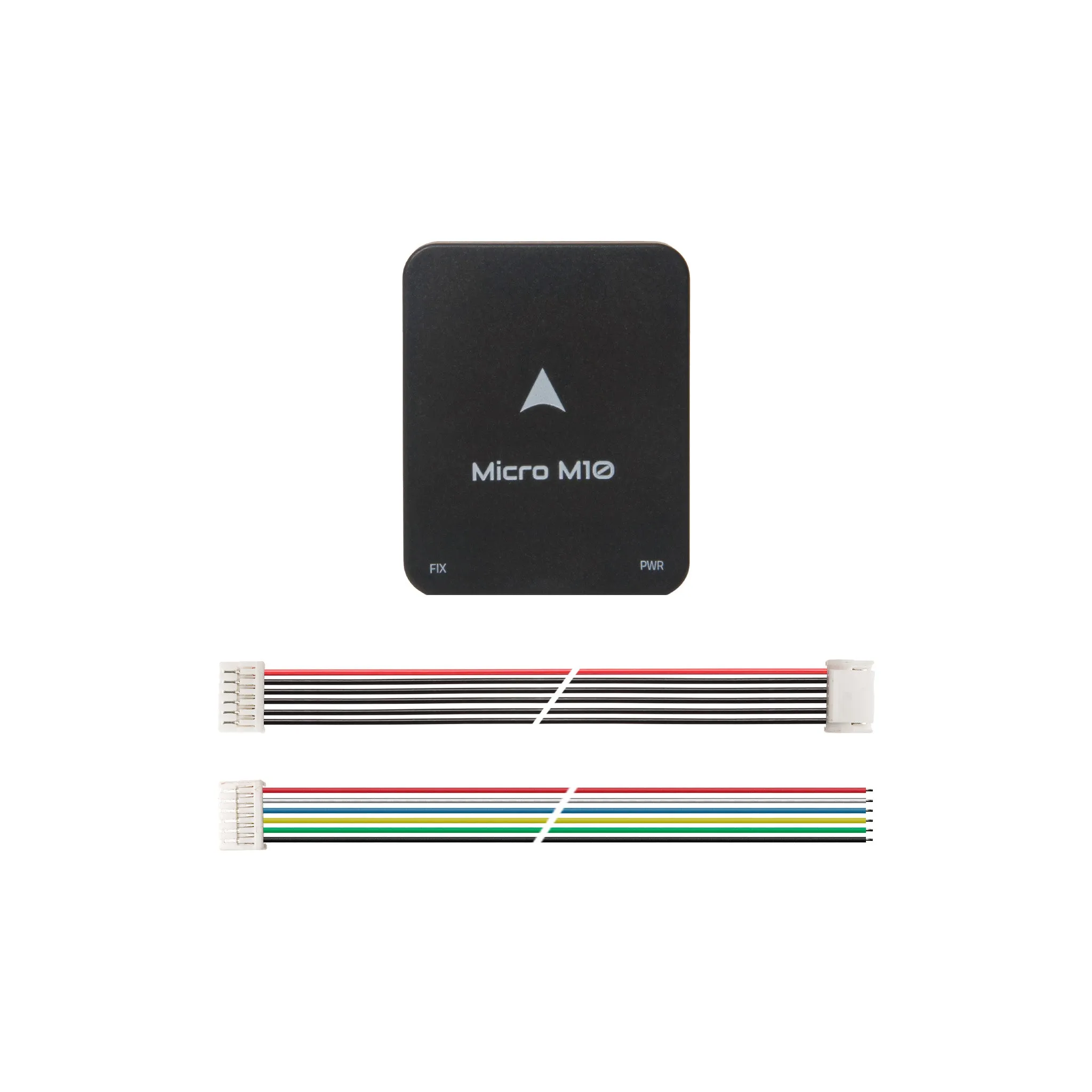

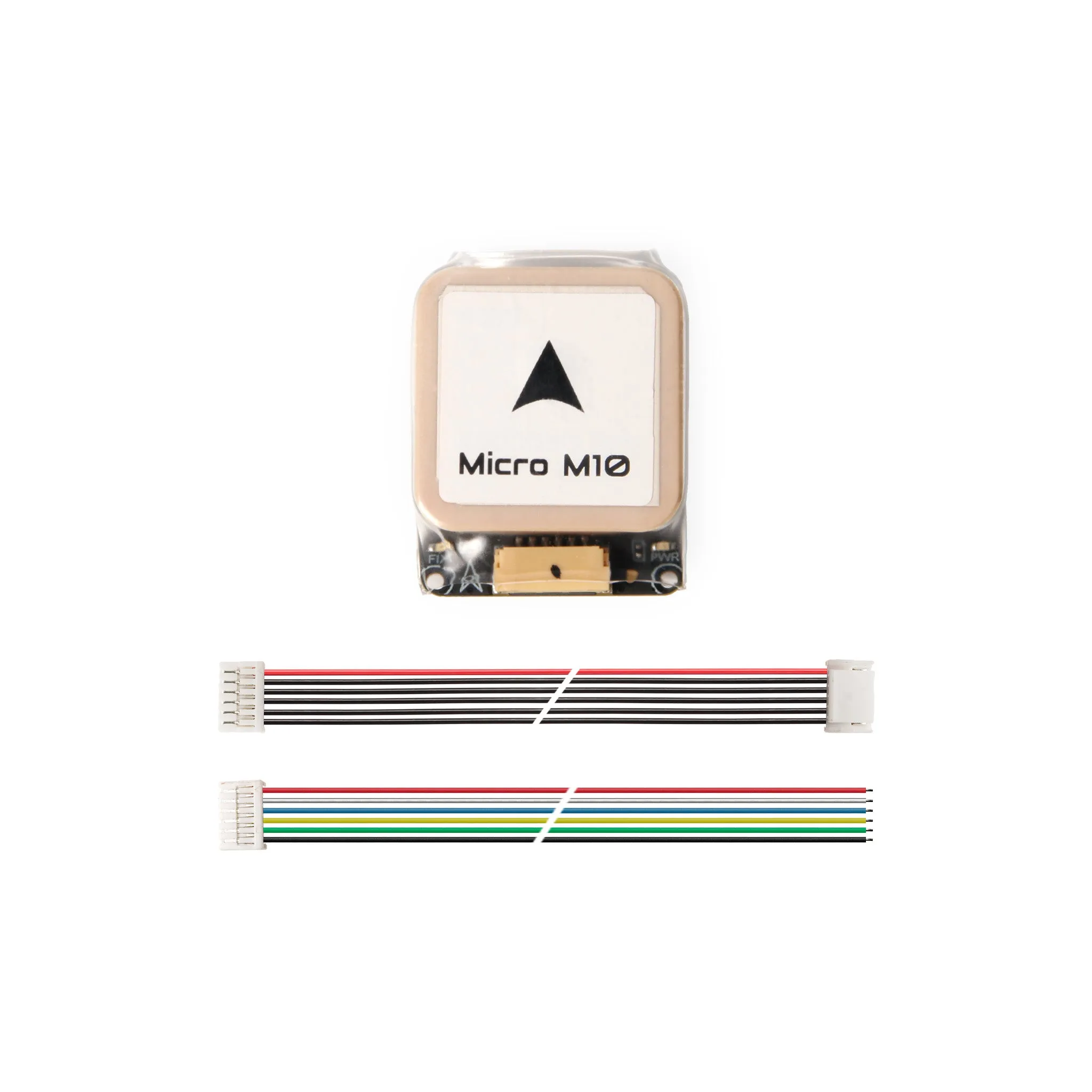

Package Includes:
- 1x Micro GPS module *1
- 1x JST GH 6-pin Connector 15 cm
- 1x JST-GH 6-pin Colored Silicon Cable 15 cm
