Humminbird SSTH 14 HW MSI T - SOLIX MEGA SI , DI , DS CHIRP w/ Temp Thru-Hull Transducer
Model: 710302-1- This accessory is compatible with the following Humminbird products: All SOLIX models with MEGA Side Imaging . This includes: SOLIX 10 CHIRP MEGA SI GPS G2, SOLIX 10 CHIRP MEGA SI GPS G2 CHO, SOLIX 12 CHIRP MEGA SI GPS G2, SOLIX 12 CHIRP MEGA SI GPS G2 CHO, SOLIX 15 CHIRP MEGA SI GPS G2, SOLIX 15 CHIRP MEGA SI GPS G2 CHO.
- This transducer provides Side Imaging (MEGA SI /800kHz/455kHz), Down Imaging (MEGA DI /800kHz/455kHz) and Dual Spectrum CHIRP 2D sonar with a CHIRP range of 150-220kHz
- MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI : 1075-1150 kHz - 400ft (122m)
- MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 250ft (76m), MEGA DI : 1075-1150 kHz - 200ft (61m)
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Dual Spectrum CHIRP Max Depth: 1200ft (365m)
- Connects to HELIX 8-12 MSI G3N models using adapter cable MKR MI-1 Humminbird HELIX Adapter Cable (#1852088)

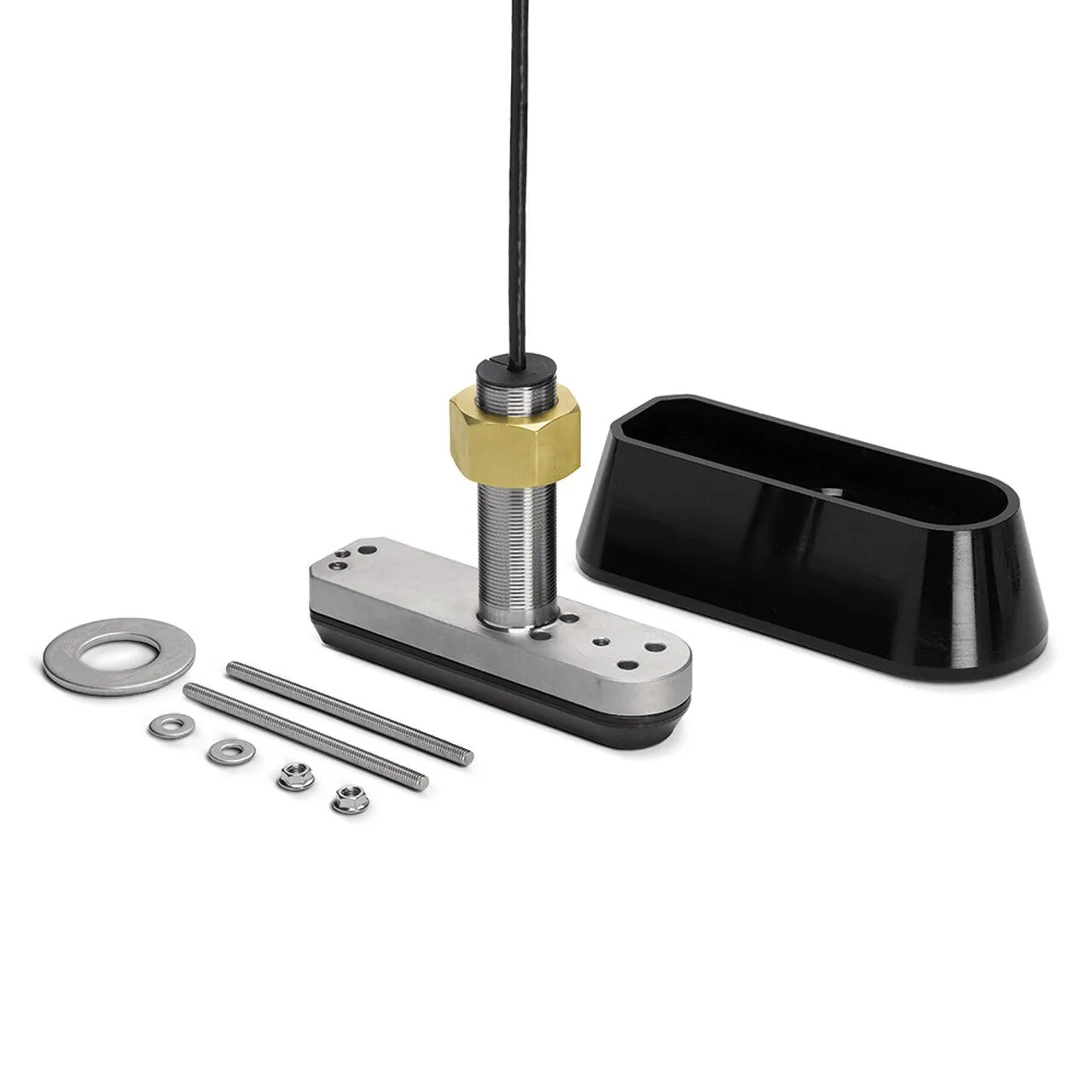

This stainless steel thru-hull transducer provides crystal-clear sonar images of fish and structure below and to each side of of your boat, thanks to MEGA Side Imaging , MEGA Down Imaging and Dual Spectrum CHIRP sonar. Designed to bring these leading sonar technolgies to larger vessels that require a thru-hull transducer solution, the SSTH 14 HW MSI T is a great choice for boats in either saltwater or freshwater environments. This product includes built-in temperature sensor, rugged stainless steel stem, fairing block, stainless steel mounting hardware and 20’ cable with a 14-pin, waterproof connector.
What's in the Box:
- Transducer
- Fairing Block
- hardware
