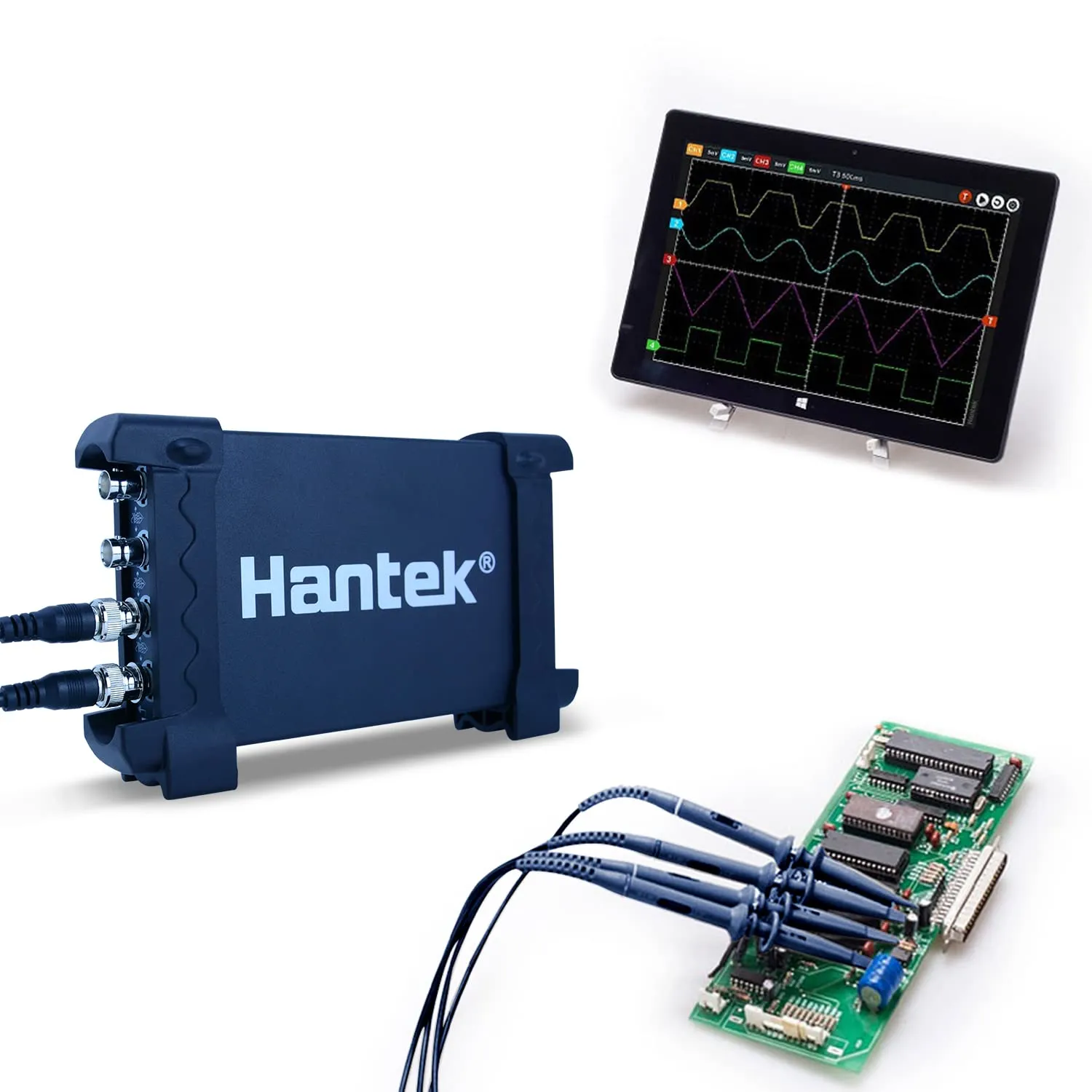

- 1.4 analog channels, 1GSa/s sampling rate, 70MHz bandwidth.
- 2.Over 20 functions, including pass/fail test, trigger, dynamic cursor tracking, waveform record and replay.
- 3.Heat-resistant and scratch-proof compact case.

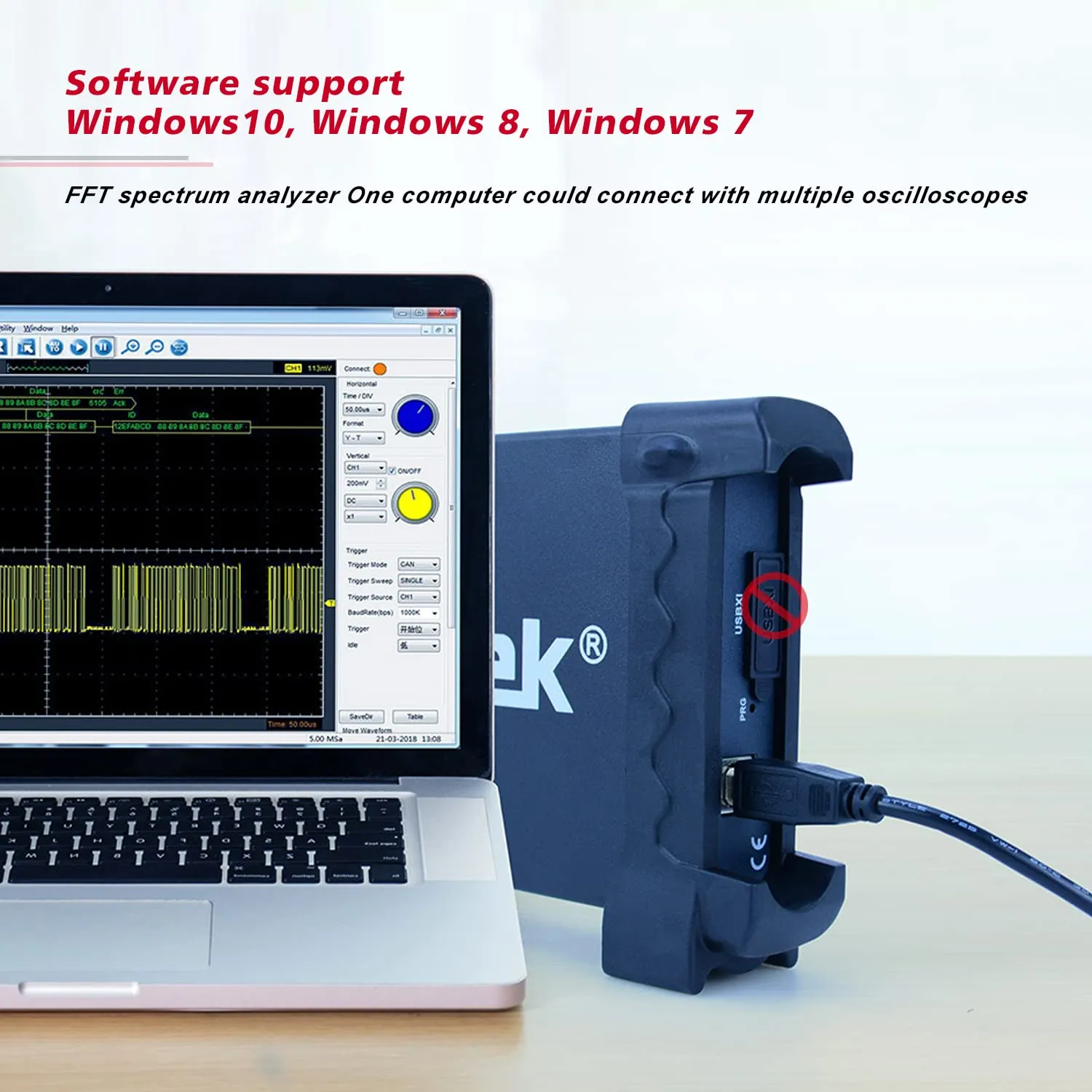

- 4.Compatible with Win 7/8/10, Android via H-scope/Openscope, Linux via Openhantek, and OSX through virtual box/machine.
- 5.Provides development library DLL with Labview/VC/VB development examples.

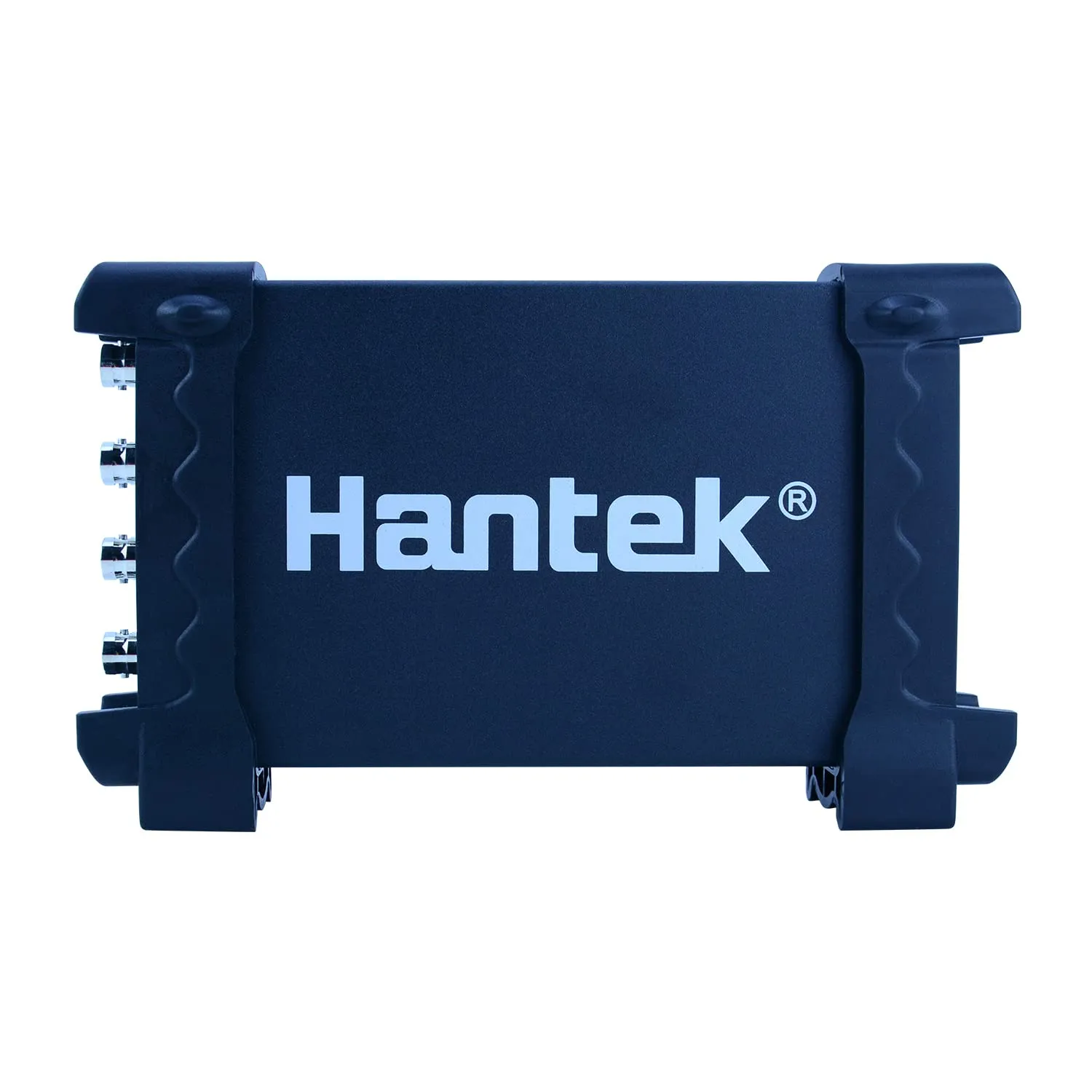

Model:Hantek6204BC
Bandwidth: 200MHz
Channel:4 CH
Real-time Sampling Rate:1GSa/s
Memory Depth:64K
Time Base Precision:±50ppm
Time Base Range:2ns/div-1000s/div (1-2-4 sequences)
Input Impedance:1MΩ 25pF
Input Sensitivity:2mV/div～10V/div
Vertical Resolution:8Bit
Vertical Displacement Range:2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe； 200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe
DC Gain Accuracy:±3%
Bandwidth Limit:20MHz
Trigger Mode:Edge, Pulse, Video, Alternative
Trigger Source:CH1, CH2, CH3,CH4
Waveform Signal Process: ,-,x,÷,FFT, Invert
Cursors Measurement:Cross, Trace, Horizontal, Vertical
Auto Measurement:Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Volume:175mm * 105mm * 25mm
Weight:0.9KG
Accessory:2 passive probes, 2 gator clip lines
- Is Discontinued By Manufacturer : No
- Product Dimensions : 6.89 x 4.13 x 0.98 inches; 2.76 Pounds
- Date First Available : September 23, 2021
- Manufacturer : Hantek
