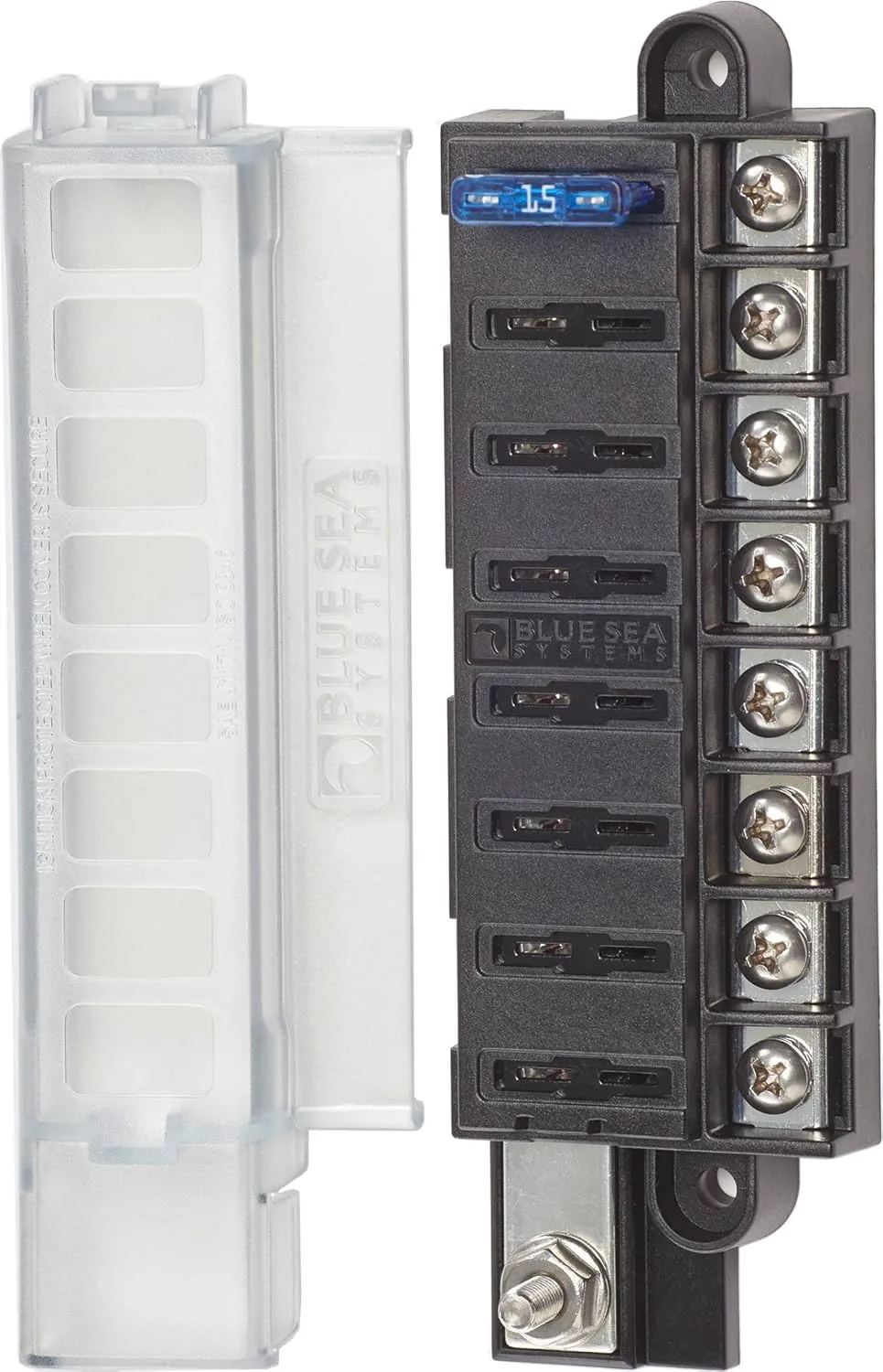

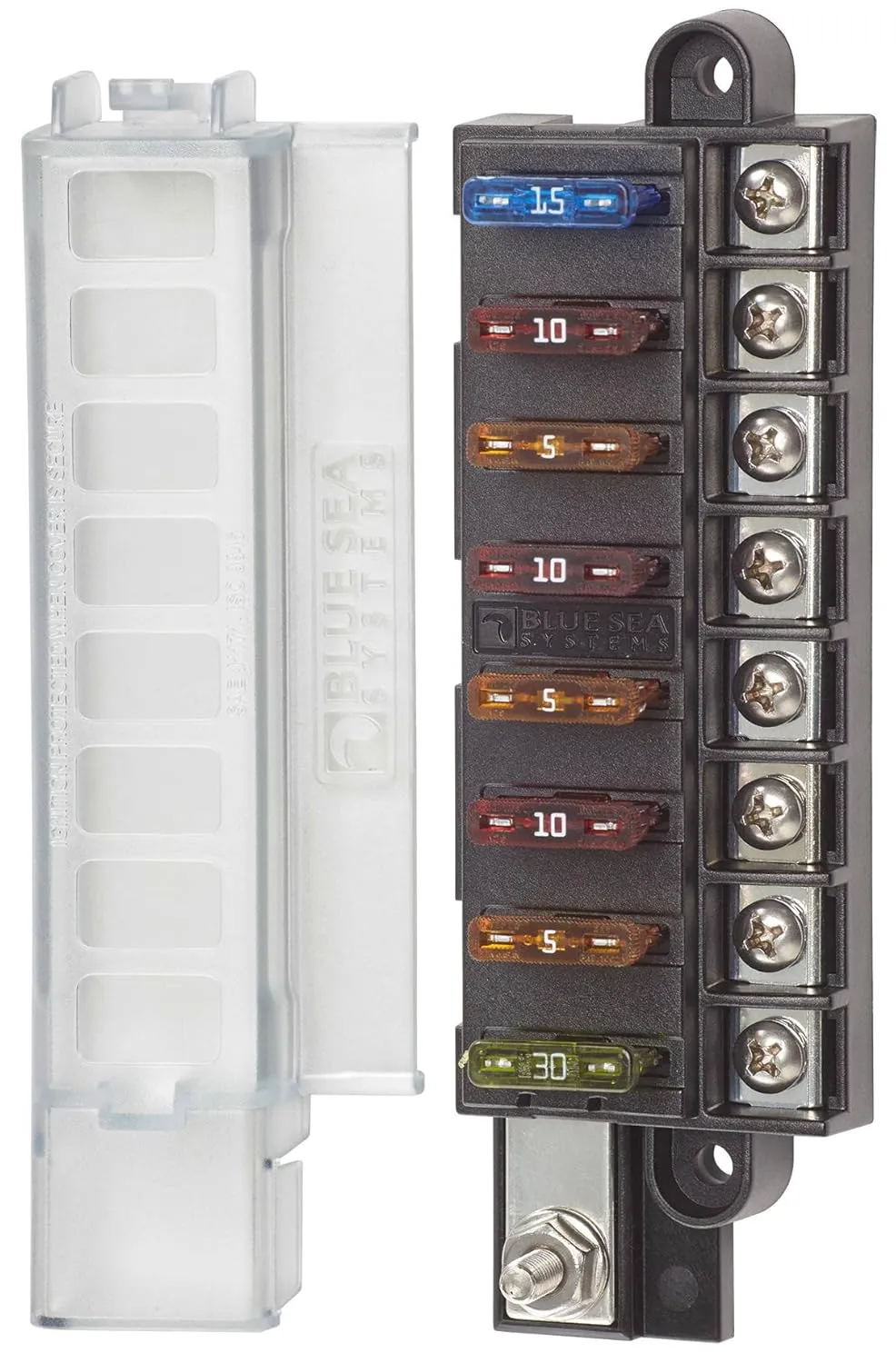

Name: Blue Sea Systems 5046 ST Blade Fuse Block Compact 8 Circuit with Cover
SKU: 563419

Blue Sea Systems Fuse Block ST Blade Compact 8 Circuit with Cover, part number 5046, is a common source fuse block that provides surface mount circuit protection for ATO/ATC fuses in a compact footprint
Max Amps: 100A per block, 30A per circuit, Max Volts: 32V DC, Mounting :#8 Screw (M4), Recommended stud torque: 24 in-lb, Screw Terminal Torque: 18in-lb, Screw terminal type: #8-32 screws with captive star lock washer, terminal stud size: #10-32
Single side design allows wire entry from one side to maximize space
Ignition protected when cover is secure –meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
Clear insulating cover meets ABYC/USCG insulation requirements. Includes 4 write-on circuit labels. Fuses sold separately

Blue Sea Systems Fuse Block ST Blade Compact 8 Circuit with Cover, part number 5046, is a common source fuse block that provides surface mount circuit protection for ATO®/ATC® fuses in a compact footprint. Max Amps: 100A per block, 30A per circuit, Max Volts: 32V DC, Mounting :#8 Screw (M4), Recommended stud torque: 24 in-lb, Screw Terminal Torque: 18in-lb, Screw terminal type: #8-32 screws with captive star lock washer, terminal stud size: #10-32. Single side design allows wire entry from one side to maximize space. Ignition protected when cover is secure –meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment. Clear insulating cover meets ABYC/USCG insulation requirements. Includes 4 write-on circuit labels. Fuses sold separately.

Is Discontinued By Manufacturer ‏ : ‎ No
Product Dimensions ‏ : ‎ 8.94 x 1.65 x 1 inches; 6.4 ounces
Department ‏ : ‎ unisex-adult
Date First Available ‏ : ‎ October 23, 2015
Manufacturer ‏ : ‎ BLUE SEA SYSTEMS

Blue Sea Systems 5046 ST Blade Fuse Block Compact 8 Circuit with Cover

Product Details
